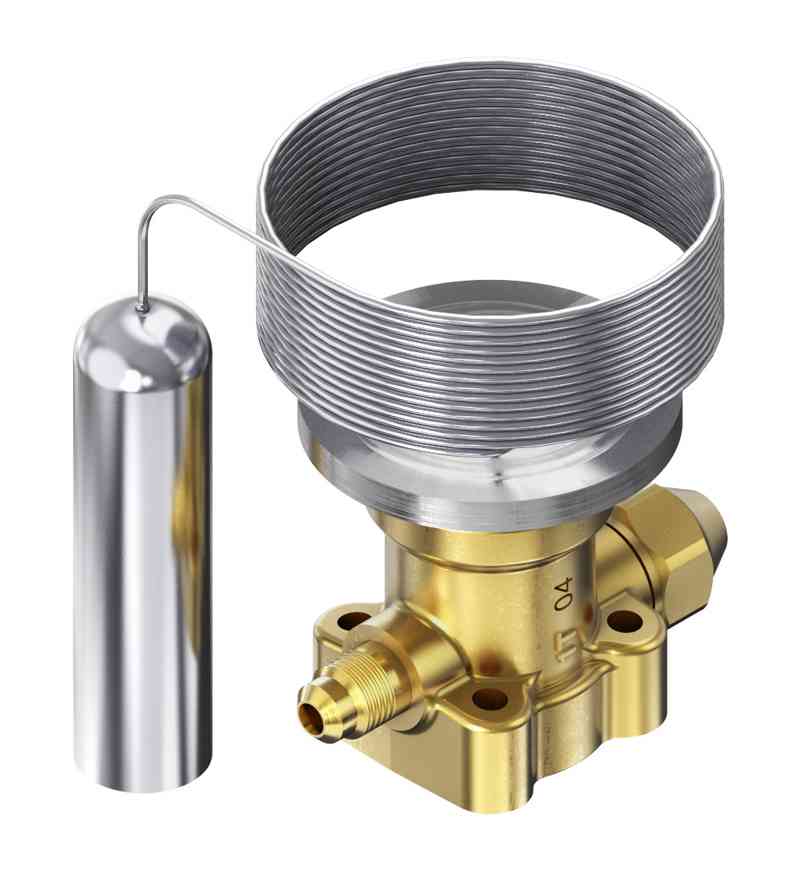

DANFOSS ELEMENT FOR EXPANSION VALVE TE5,FLARE,1/4(TES5)
Danfoss Element For Expansion Valve TE5,Flare,1/4(TES5)
DA-TES5-067B3342
Element for expansion valve, TE 5, R404A/R507A
067B3342
Temperature range [°C]: -40 - 10, Pressure equalization: Externally equalized
Specification | Details |
---|---|
Gross Weight | 0.524 Kg |
Net Weight | 0.44 Kg |
Volume | 1.663 Liter |
Approval |
EAC LLC CDC TYSK |
Body Material | Brass |
BRANDS : DANFOSS
Specification | Details |
---|---|
Capillary Tube Length [in] | 118 in |
Capillary Tube Length [mm] | 3000 mm |
Equalization Connection Type | Flare |
Equalization Size [in] | 1/4 in |
In Scope of WEEE and Contain Batteries | No |
Max. Working Pressure [bar] | 28 bar |
Max. Working Pressure [psig] | 400 psig |
Packing Format | Multi Pack |
Parts Program Name | TE 5 |
Pressure Equalization | Externally Equalized |
Product Group | Expansion Valves |
Product Name Description | Expansion Valve Element |
Quantity per Packing Format | 12 pc |
REACH Candidate List Substances | Lead (CAS no. 7439-92-1) |
Refrigerants | R404A/R507A |
SCIP Dossier No. | 7a4717a2-7803-4273-9d94-59ccfb927c1e |
SCIP Dossier Product Name | TE |
Temperature Range [°C] [Max] | 10 °C |
Temperature Range [°C] [Min] | -40 °C |
Temperature Range [°F] [Max] | 50 °F |
Temperature Range [°F] [Min] | -40 °F |
Pressure Equalization | Externally Equalized |
Product Group | Expansion Valves |
