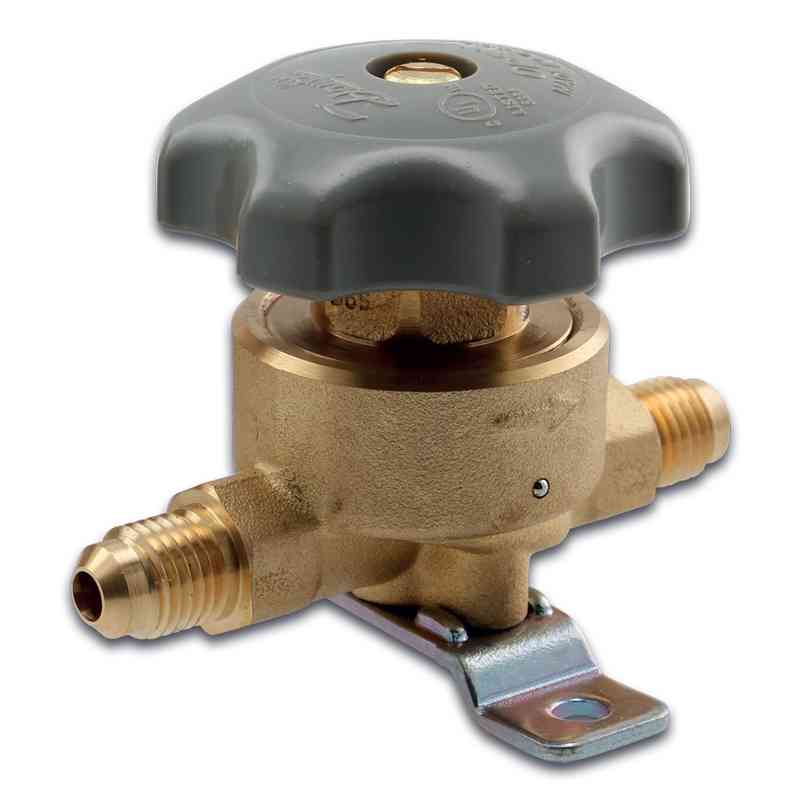

Danfoss Shut Off Valve Flare - 1/4"

Shut-off diaphragm valve, BML 6

009G0101

Inlet connection type: Flare, Outlet connection type: Flare, Inlet size [in]: 1/4 in, Outlet size [in]: 1/4 in

Specification Details
Gross Weight 0.276 Kg
Net Weight 0.25 Kg
Volume                             0.704 Liter
Approval

C UL US LISTED

EAC

LLC CDC TYSK

Body Material Brass



BRANDS : DANFOSS



Specification Details
Connection Material Brass
Cv Value [gal/min] 0.35 gal/min
Direction Straightway
Equipment Handwheel
Flow Direction Indicator Embossed 1-way arrow
Fluid Group

1

2

In Scope of WEEE and Contain Batteries                               No
Inlet Connection Type Flare
Inlet Size [in] 1/4 in
Kv Value [m³/h] 0.3 m³/h
Lubricants Compatibility Oil-free applications
Max. Test Pressure [bar] 36.4 bar
Max. Test Pressure [psig] 528 psig
Max. Working Pressure [bar] 28 bar
Max. Working Pressure [psig] 406 psig
Oil-Free Refrigerants R134a, R513A, R515B
Outlet Connection Type Flare
Outlet Size [in] 1/4 in
Packing Format Multi pack
PED Category Art. 4, par. 3
Product Accessories BM/GBC valve accessories
Product Group Shut-off and regulating valves
Product Name Description Shut-off diaphragm valve
Quantity per Packing Format 20 pc
REACH Candidate List Substances Lead (CAS no. 7439-92-1)
Refrigerants R134a, R22/R407C, R513A, R407H, R449B, R515B, R450A, R1234yf, R516A, R404A/R507A
SCIP Dossier No. 39a55314-7dd3-4133-963f-63cfcc6269ba
Serviceable BM/GBC valve spare parts
Temperature Range [°C] (Max) 100 °C
Temperature Range [°C] (Min) -55 °C
Temperature Range [°F] (Max) 212 °F
Temperature Range [°F] (Min) -67 °F
Type BML 6
UL Approval File Name REFRIGERANT VALVE 53R0
UL Approved Refrigerants R134a, R22, R404A, R407C, R407H, R449B, R450A, R507A, R513A, R515B
Working Range [bar] (Max) 21 bar
Working Range [bar] (Min) -1 bar
Working Range [psig] (Max) 304 psig
Working Range [psig] (Min) -14 psig
