Danfoss Sight Glass Flare - SGI 10 3/8'

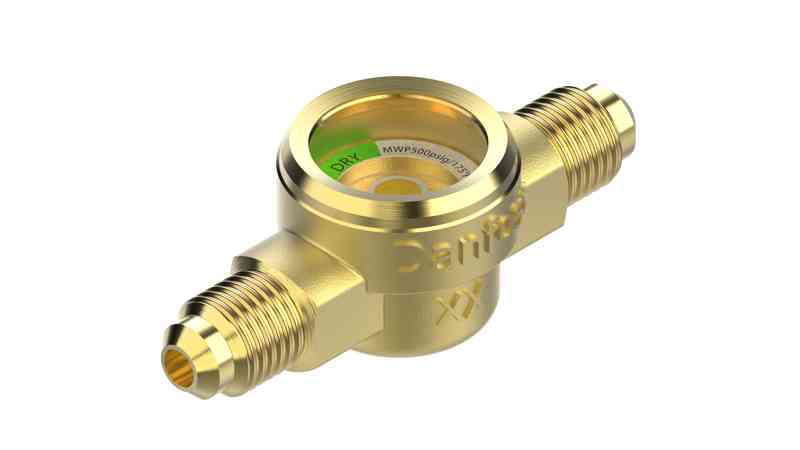

Danfoss Sight Glass Flare - SGI 10 3/8"
SGP 10 N, Sight glass, Flare, 10.00 mm, Flare, 10.00 mm
014L0162
Inlet connection type: Flare, Inlet size [mm]: 10.00, Outlet connection type: Flare, Outlet size [mm]: 10.00
| Specification | Details |
|---|---|
| Gross Weight | 0.18 Kg |
| Net Weight | 0.167 Kg |
| Volume | 0.148 Liter |
| EAN | 5702428818841 |
| Approval |
C UL US LISTED EAC |
| Approval File Name | REF. LIQUID INDICATOR 76H4 |
BRANDS : DANFOSS
| Specification | Details |
|---|---|
| Body Material | Brass |
| Connection Material | Brass |
| Green: Max Moisture Concentration @25°C | R134a: 30 ppm, R22: 30 ppm, R404A: 20 ppm, R407A: 29 ppm, R407C: 30 ppm, R407F: 30 ppm, R410A: 66 ppm, R448A: 28 ppm, R449A: 29 ppm, R450A: 23 ppm, R452A: 20 ppm, R513A: 22 ppm, R507A: 15 ppm. |
| Green: Max Moisture Concentration @43°C | R134a: 45 ppm, R22: 50 ppm, R404A: 25 ppm, R407A: 48 ppm, R407C: 60 ppm, R407F: 60 ppm, R410A: 135 ppm, R448A: 70 ppm, R449A: 53 ppm, R450A: 46 ppm, R452A: 30 ppm, R513A: 22 ppm, R507A: 30 ppm. |
| In Scope of WEEE and Contain Batteries | No |
| Inlet Connection Type | Flare |
| Inlet Internal/External | External |
| Inlet Size [in] | 3/8 in |
| Inlet Size [mm] | 10 mm |
| Lubricants Compatibility | Oil-free applications |
| Max. Working Pressure [bar] | 52 bar |
| Max. Working Pressure [psig] | 754 psig |
| Moisture Indicator | N indicator |
| Oil-Free Refrigerants | R1234ze(E), R134a, R513A, R515B |
| Outlet Connection Type | Flare |
| Outlet Internal/External | External |
| Outlet Size [in] | 3/8 in |
| Outlet Size [mm] | 10 mm |
| Packing Format | Multi pack |
| Product Accessories | Generic accessories |
| Product Group | Sight glasses |
| Product Name Description | Sight glass |
| Quantity per Packing Format | 25 pc |
| REACH Candidate List Substances |
Lead (CAS no. 7439-92-1) Cobalt dichloride (CAS no. 7646-79-9) |
| Refrigerants | R134a, R22, R404A, R407A, R407C, R407F, R410A, R448A, R449A, R450A, R452A, R513A, R1233zd(E), R407H, R515B, R744, R463A, R1234yf, R1234ze(E), R32, R452B, R454B, R454C, R455A, R507A. |
| SCIP Dossier No. | 323c7b85-ff73-43cd-8fce-a44eabbf5297 |
| Serviceable | No |
| Temperature Range [°C] (Max) | 80 °C |
| Temperature Range [°C] (Min) | -50 °C |
| Temperature Range [°F] (Max) | 175 °F |
| Temperature Range [°F] (Min) | -58 °F |
| Type | SGP 10 N |
| UL Approval File Name | REF. LIQUID INDICATOR 76H4 |
| UL Approved Refrigerants | R1233zd(E), R134a, R22, R404A, R407A, R407C, R407F, R407H, R410A, R448A, R449A, R450A, R452A, R463A, R507A, R513A, R515B, R744. |
| Yellow: Min Moisture Concentration @25°C | R134a: 100 ppm, R22: 120 ppm, R404A: 70 ppm, R407A: 115 ppm, R407C: 140 ppm, R410A: 266 ppm, R448A: 110 ppm, R449A: 105 ppm, R450A: 148 ppm, R452A: 79 ppm, R513A: 75 ppm, R407F: 168 ppm, R507A: 60 ppm. |
| Yellow: Min Moisture Concentration @43°C | R134a: 170 ppm, R404A: 100 ppm, R407C: 225 ppm, R507A: 110 ppm, R22: 200 ppm, R407A: 192 ppm, R407F: 240 ppm, R410A: 540 ppm, R448A: 227 ppm, R449A: 200 ppm, R450A: 245 ppm, R452A: 143 ppm, R513A: 123 ppm. |
