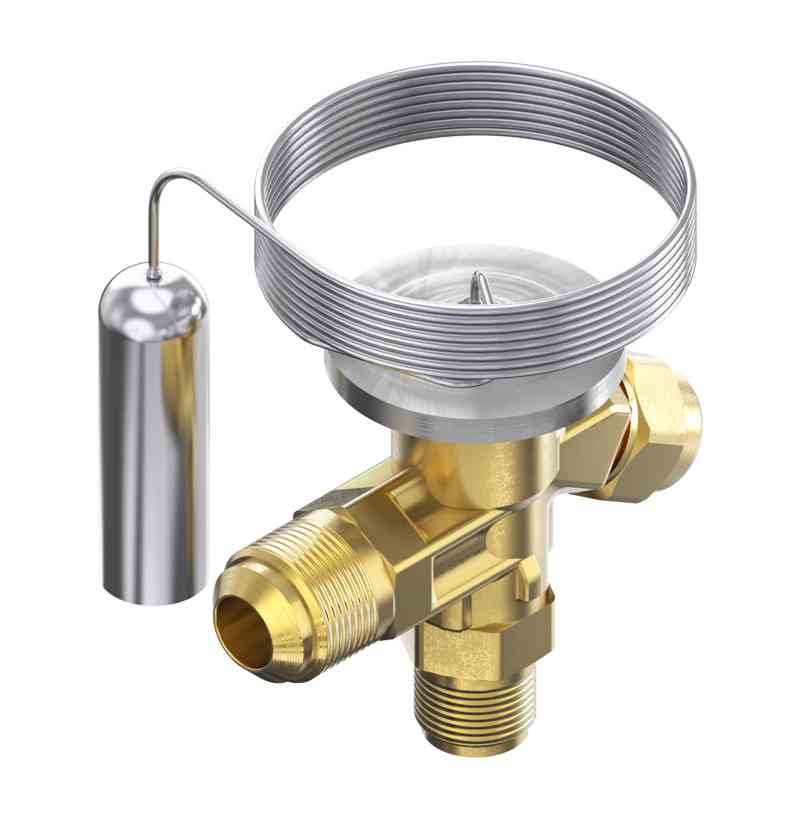

Danfoss Expansion Valve TN2 R134
Thermostatic expansion valve, T 2, R134a/R513A
068Z3346
Temperature range [°C]: -40 - 10, Pressure equalization: Internally equalized
Specification | Details |
---|---|
Product Name | Thermostatic Expansion Valve |
Body Material | Brass |
Capillary Tube Length [in] | 59 in |
Capillary Tube Length [mm] | 1500 mm |
Connection Material | Brass |
Direction | Angleway |
Flow Direction | Single-flow |
Flow Direction Indicator | Embossed 1-way arrow |
Fluid Group | 2 |
Identical Product | 068Z3542 |
Type | T 2" |
BRANDS : DANFOSS
Key Specifications:
Parameter | Value |
---|---|
In Scope of WEEE and Contain Batteries | No |
Inlet Connection Type | Flare |
Inlet Size [in] | 3/8 in |
Max. Working Pressure [bar] | 34 bar |
Max. Working Pressure [psig] | 500 psig |
Outlet Connection Type | Flare |
Outlet Size [in] | 1/2 in |
Packing Format | Multi-pack |
Parts Included | Bulb strap |
Parts Program Name | T2/TE2 |
PED Category | Art. 4, par. 3 |
Pressure Equalization | Internally equalized |
Product Accessories | TXV accessories |
Product Group | Expansion valves |
Quantity per Packing Format | 20 pc |
Rated Cap. Cond. Range N [IMP] | OS=10.8 ºF tcond=100 ºF tevap=40 ºF tliq=98 ºF |
Rated Cap. Cond. Range N [SI] | OS=6K tcond=38 ºC tevap=4.4 ºC tliq=37 ºC |
REACH Candidate List Substances | Lead (CAS no. 7439-92-1) |
Refrigerants | R134a/R513A |
SCIP Dossier No. | 6450ee16-252d-49df-8f77-4136a47bb857 |
SCIP Dossier Product Name | T2/TE2 |
Serviceable | TXV spare parts |
Static Superheat (SS) [°C] | 4 °C |
Static Superheat (SS) [°F] | 7.2 °F |
Superheat Setting | Adjustable |
Temperature Range [°C] [Max] | 10 °C |
Temperature Range [°C] [Min] | -40 °C |
Temperature Range [°F] [Max] | 50 °F |
Temperature Range [°F] [Min] | -40 °F |
Approval | EAC, LLC CDC TYSK |
Danfoss 068Z3542 Expansion Valve TN 2, a reliable component for refrigeration systems, with adjustable superheat settings and a wide temperature range. This expansion valve is suitable for various applications in the refrigeration industry
