Danfoss Expansion Valve Tx2 R22

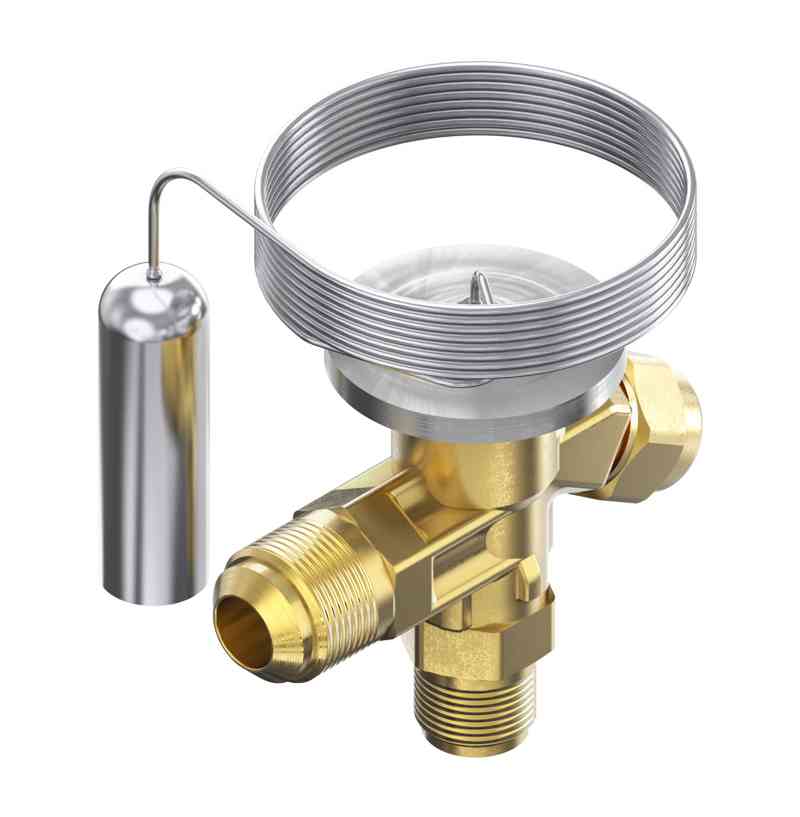

Thermostatic Expansion Valve - T 2, R22/R407C (068Z3206)
Product Name | T 2, R22/R407C (068Z3206) |
---|---|
Product Accessories | TXV Accessories |
Product Group | Expansion Valves |
Product Name Description | Thermostatic Expansion Valve |
Type | T 2 |
BRANDS : DANFOSS
Key Specifications:
Parameter | Value |
---|---|
Part Number | 068Z3206 |
Inlet Connection Type | Flare |
Inlet Size [in] | 3/8 in |
Outlet Connection Type | Flare |
Outlet Size [in] | 1/2 in |
Temperature Range [°C] | -40 to 10 °C |
Temperature Range [°F] | -40 to 50 °F |
Pressure Equalization | Internally Equalized |
Max. Working Pressure [bar] | 34 bar |
Max. Working Pressure [psig] | 500 psig |
Body Material | Brass |
Capillary Tube Length [in] | 59 in |
Capillary Tube Length [mm] | 1500 mm |
Connection Material | Brass |
Direction | Angleway |
Flow Direction | Single-Flow |
Flow Direction Indicator | Embossed 1-Way Arrow |
Fluid Group | 2 |
Identical Product | 068Z3466 |
Gross Weight | 0.306 Kg |
Net Weight | 0.284 Kg |
Volume | 0.477 Liter |
Packing Format | Multi-Pack |
Parts Included | Bulb Strap |
Parts Program Name | T2/TE2 |
PED Category | Art. 4, par. 3 |
Quantity per Packing Format | 20 pcs |
Rated Cap. Cond. Range N [IMP] | OS=10.8 ºF, tcond=100 ºF, tevap=40 ºF, tliq=98 ºF |
Rated Cap. Cond. Range N [SI] | OS=6K, tcond=38 ºC, tevap=4.4 ºC, tliq=37 ºC |
REACH Candidate List Substances | Lead (CAS no. 7439-92-1) |
Refrigerants | R22/R407C |
Serviceable | TXV Spare Parts |
Static Superheat (SS) [°C] | 4 °C |
Static Superheat (SS) [°F] | 7.2 °F |
Superheat Setting | Adjustable |
Temperature Range [°C] [Max] | 10 °C |
Temperature Range [°C] [Min] | -40 °C |
Temperature Range [°F] [Max] | 50 °F |
Temperature Range [°F] [Min] | -40 °F |
Explore the T 2 Thermostatic Expansion Valve designed for a temperature range of -40 to 10 °C (-40 to 50 °F) and optimized for R22/R407C refrigerants. Its internally equalized pressure equalization ensures precise control in various cooling applications.
