Danfoss Shut Off Valve Flare - 5/8'

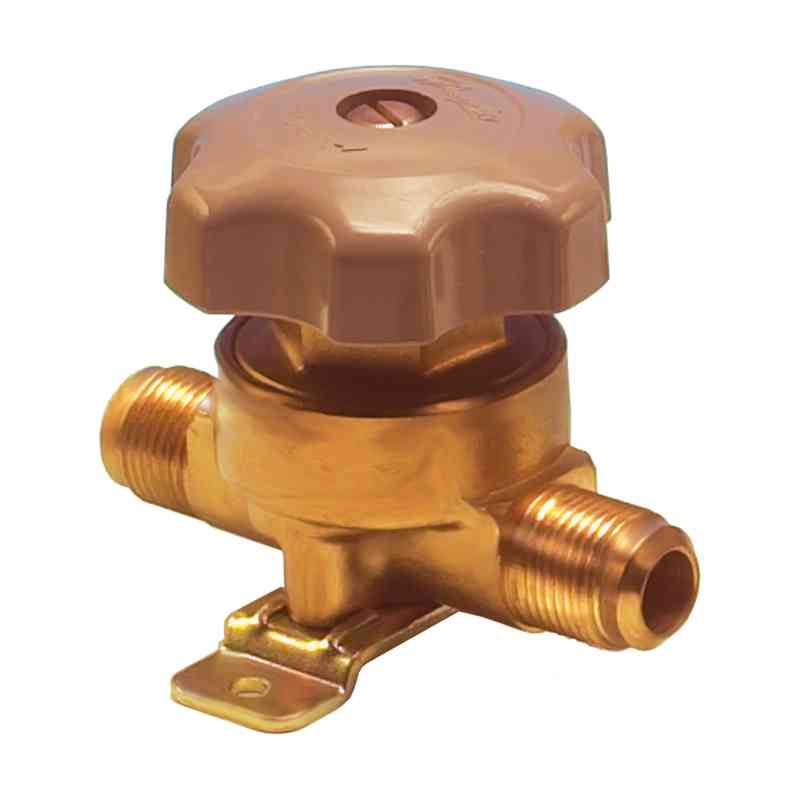

Shut-off Diaphragm Valve, BML 15 (Part No. 009G0168)
Product Name | Shut-off Diaphragm Valve, BML 15 |
---|---|
Part Number | 009G0168 |
Inlet Connection Type | Flare |
Outlet Connection Type | Flare |
Inlet Size [in] | 5/8 in |
Outlet Size [in] | 5/8 in |
Key Specifications:
Parameter | Value |
---|---|
Gross Weight | 0.834 Kg |
Net Weight | 0.747 Kg |
Volume | 1.615 Liter |
EAN | 5702422029670 |
Body Material | Brass |
Category | Art. 4, par. 3 |
Connection Material | Brass |
Cv Value [gal/min] | 2.54 gal/min |
Direction | Straightway |
Equipment | Handwheel |
Flow Direction Indicator | Embossed 1-way arrow |
Fluid Group | 1, 2 |
Kv Value [m³/h] | 2.2 m³/h |
Lubricants Compatibility | Oil-free applications |
Max. Test Pressure [bar] | 36.4 bar |
Max. Test Pressure [psig] | 528 psig |
Max. Working Pressure [bar] | 28 bar |
Max. Working Pressure [psig] | 406 psig |
Oil-Free Refrigerants | R134a, R513A, R515B |
Outlet Connection Type | Flare |
Outlet Size [in] | 5/8 in |
Packing Format | Multi-pack |
Product Accessories | BM/GBC valve accessories |
Product Group | Shut-off and regulating valves |
Quantity per Packing Format | 12 pcs |
REACH Candidate List Substances 0.1 | Lead (CAS no. 7439-92-1) |
Refrigerants | R134a, R22/R407C, R450A, R513A, R407H, R449B, R515B, R1234yf, R516A, R404A/R507A |
Serviceable | BM/GBC valve spare parts |
Temperature Range [°C] [Max] | 100 °C |
Temperature Range [°C] [Min] | -55 °C |
Temperature Range [°F] [Max] | 212 °F |
Temperature Range [°F] [Min] | -67 °F |
Type | BML 15 |
UL Approval File Name | REFRIGERANT VALVE 53R0 |
UL Approved Refrigerants | R134a, R22, R404A, R407C, R407H, R449B, R450A, R507A, R513A, R515B |
Working Range [bar] [Max] | 21 bar |
Working Range [bar] [Min] | -1 bar |
Working Range [psig] [Max] | 304 psig |
Working Range [psig] [Min] | -14 psig |
This BML 15 Shut-off Diaphragm Valve is a versatile and durable component designed for various refrigeration applications, offering reliability and performance across a range of temperatures and pressures.
BRANDS : DANFOSS
