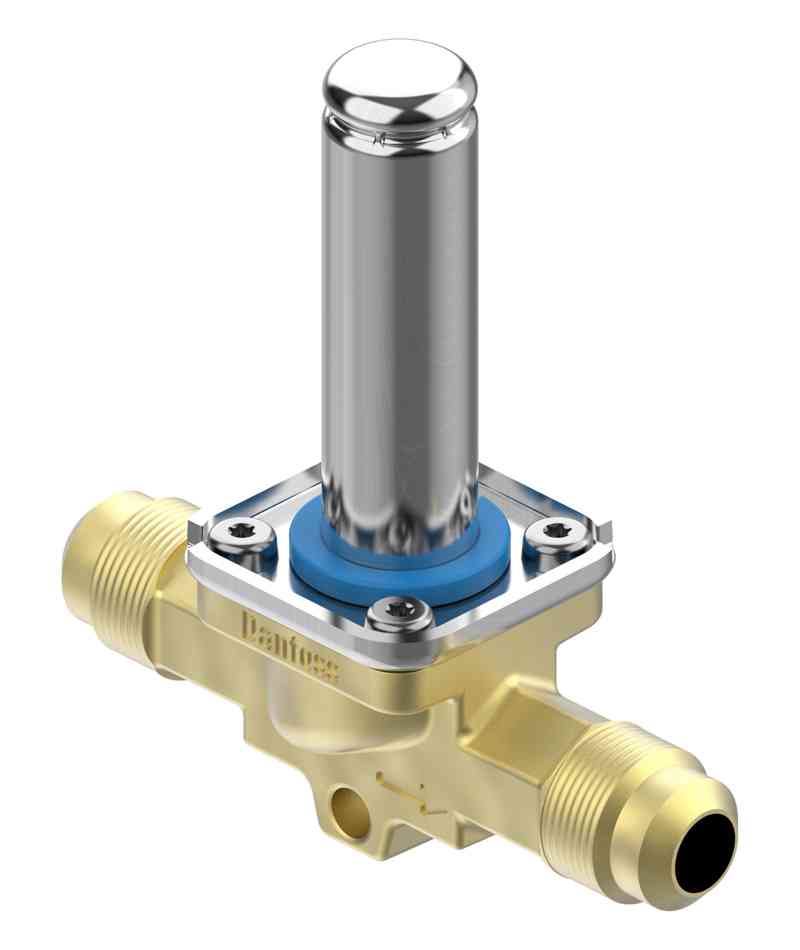

Danfoss Solenoid Valve Flare 1/4' EVR-3
Solenoid valve, EVR 3, Flare, 1/4 in, Function: NC
032F8107
Kv value [m³/h]: 0.270, Packing format: Multi pack
Specification | Details |
---|---|
Product Name | EVR 3 |
Inlet Connection Type | Flare |
Inlet Size [in] | 1/4 in |
Inlet Size [mm] | 6 mm |
Outlet Connection Type | Flare |
Outlet Size [in] | 1/4 in |
Outlet Size [mm] | 6 mm |
Function | Normally Closed (NC) |
Kv Value [m³/h] | 0.270 m³/h |
Cv Value [gal/min] | 0.31 gal/min |
Orifice Size [mm] | 3.3 mm |
Max. Working Pressure [bar] | 45.2 bar |
Max. Working Pressure [psig] | 655 psig |
MaxOPD [bar] 10W AC | 38 bar |
MaxOPD [psi] 10W AC | 550 psi |
Medium Temperature Range [°C] | -40 °C to 105 °C |
Medium Temperature Range [°F] | -40 °F to 221 °F |
Ambient Temperature Range [°C] | -40 °C to 80 °C |
Ambient Temperature Range [°F] | -40 °F to 175 °F |
Lubricants Compatibility | AB, PAG, PAO, POE, PVE |
Coil | No |
Manual Operation Option | No |
Packing Format | Multi-pack |
Identical Product | 032F8108 |
Approval | EAC, LLC CDC TYSK |
Product Group | Solenoid Valves |
Product Accessories | Solenoid Valve Accessories |
Product Name Description | Solenoid Valve |
Quantity per Packing Format | 24 pcs |
PED Category | Art. 4, par. 3 |
REACH Candidate List Substances | Lead (CAS no. 7439-92-1) |
Refrigerants | R125, R134a, R404A, R407A, R407F, R410A, R417A, R448A, R449A, R450A, R452A, R513A, R407H, R413A, R422A, R422B, R422D, R438A, R447A, R449B, R463A, R513B, R515A, R515B, R442A, R447B, R512A, R22, R407C, R455A, R1234yf, R1234ze(E), R152a, R32, R444B, R452B, R454A, R454B, R454C, R507A, R516A |
SCIP Dossier No. | 7d4d3ef3-e2d2-40aa-a84a-0a3286c91c98 |
SCIP Dossier Product Name | EVR 2-8/EVO 100-102 (NC) |
Serviceable | Solenoid Valve Spare Parts |
Type | EVR 3 |
Type Designation | Solenoid Valve |
Valve Operation | Direct |
