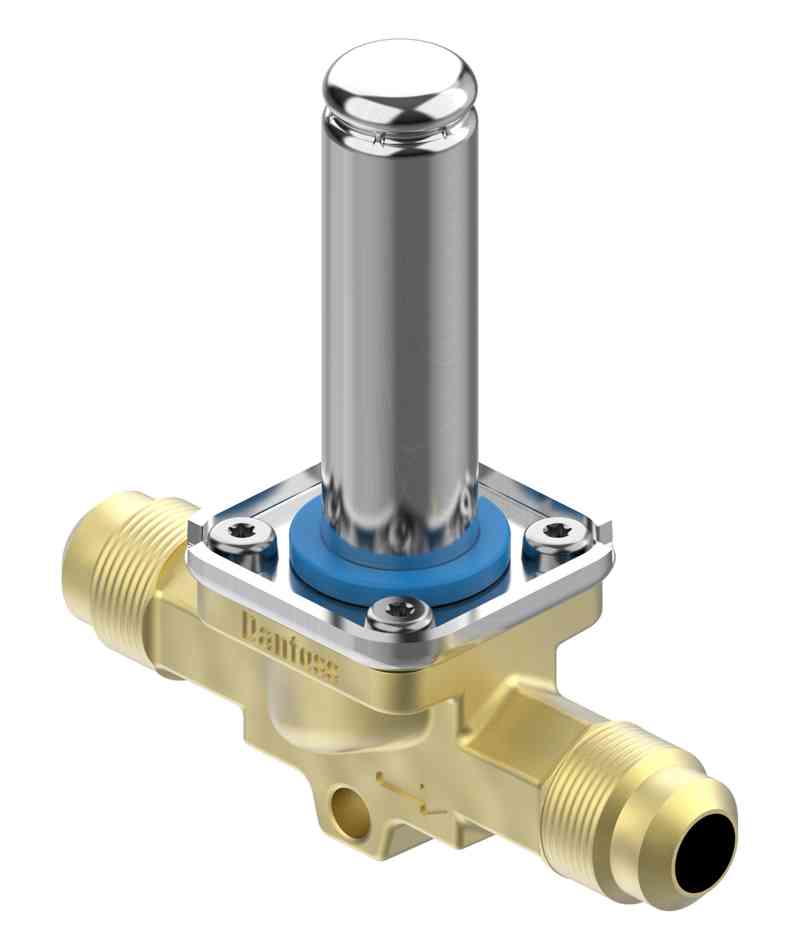

Danfoss Solenoid Valve Flare 3/8' EVR-6
EVR 6 Solenoid Valve Flare 3/8"
| Inlet Connection Type | Flare |
|---|---|
| Inlet Size [in] | 3/8 in |
| Inlet Size [mm] | 10 mm |
| Kv Value [m³/h] | 1.000 |
| Cv Value [gal/min] | 1.15 gal/min |
| Outlet Connection Type | Flare |
| Outlet Size [in] | 3/8 in |
| Outlet Size [mm] | 10 mm |
| Function | Normally Closed (NC) |
BRANDS : DANFOSS
Key Specifications:
| Specification | Value |
|---|---|
| Gross Weight | 0.254 Kg |
| Net Weight | 0.204 Kg |
| Volume | 0.852 Liter |
| Actuator System [mm] | 13.5 mm |
| Ambient Temperature | -40 - 80 °C |
| Ambient Temperature Range [°F] [Max] | 175 °F |
| Ambient Temperature Range [°F] [Min] | -40 °F |
| Fluid Group | 1, 2 |
| Lubricants Compatibility | AB, PAG, PAO, POE, PVE |
| Manual Operation Option | No |
| Max. Working Pressure [bar] | 45.2 bar |
| Max. Working Pressure [psig] | 655 psig |
| MaxOPD[bar] 10W AC | 38 bar |
| MaxOPD[bar] 20W DC | 28 bar |
| MaxOPD[bar] coil BJ/BX | 38 bar |
| MaxOPD[psi] 10W AC | 550 psi |
| MaxOPD[psi] 20W DC | 406 psi |
| MaxOPD[psi] coil BJ/BX | 550 psi |
| Medium Temperature Range [°C] [Max] | 105 °C |
| Medium Temperature Range [°C] [Min] | -40 °C |
| Medium Temperature Range [°F] [Max] | 221 °F |
| Medium Temperature Range [°F] [Min] | -40 °F |
| MinODP [bar] | 0.03 bar |
| MinODP [psi] | 0.44 psi |
| MOPD[bar/psi] | Coil Dependent |
| Orifice Size [mm] | 6 mm |
| Parts Program Name | EVR |
| Quantity per Packing Format | 12 pcs |
| REACH Candidate List Substances 0.1 | Contains Lead (CAS no. 7439-92-1) |
| Valve Operation | Servo-Diaphragm |
Refrigerants Compatibility:
- R125, R134a, R22, R404A, R407A, R407C, R407F, R407H, R410A, R413A, R417A, R422A, R422B, R422D, R438A, R442A, R447A, R447B, R448A, R449A, R449B, R450A, R452A, R463A, R507A, R512A, R513A, R513B, R515A, R515B
UL Approved Refrigerants:
- R125, R134a, R22, R404A, R407A, R407C, R407F, R407H, R410A, R413A, R417A, R422A, R422B, R422D, R438A, R442A, R447A, R447B, R448A, R449A, R449B, R450A, R452A, R463A, R507A, R512A, R513A, R513B, R515A, R515B
This EVR 6 Solenoid Valve is designed for various refrigeration applications and offers high performance and reliability. It's suitable for a wide range of temperatures and pressures, making it a versatile choice for your needs.
