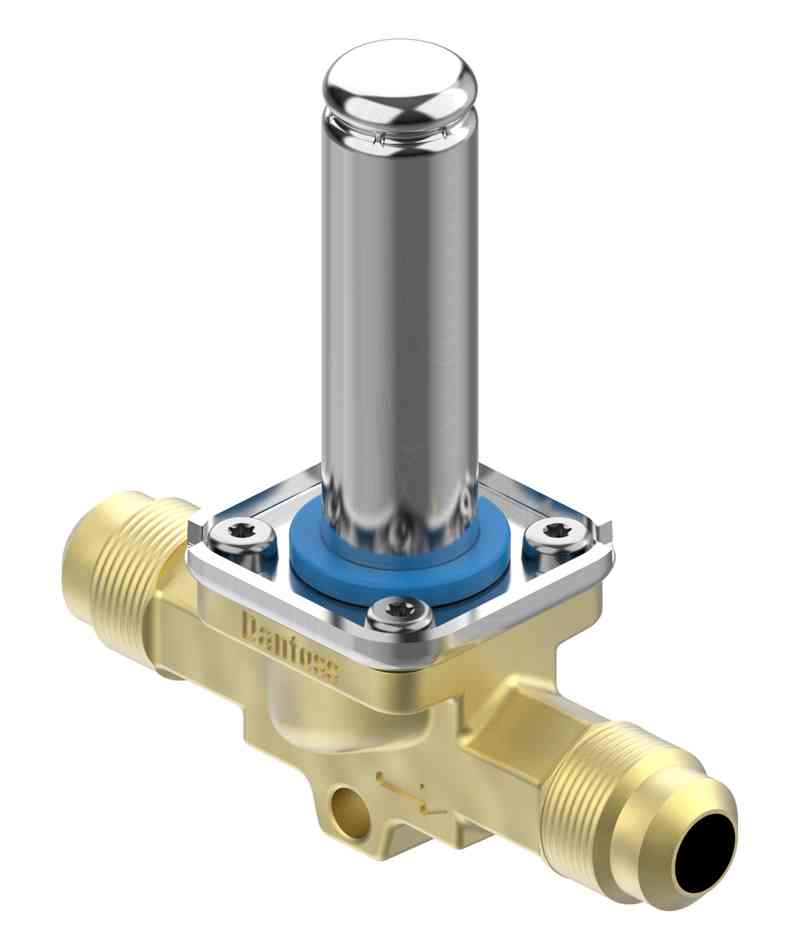

Danfoss Solenoid Valve Flare 3/8' EVR-3
EVR 3 Solenoid Valve Flare 3/8
| Product Name | Solenoid Valve, EVR 3 |
|---|---|
| Part Number | 032F8116 |
| Inlet Connection Type | Flare |
| Inlet Size [in] | 3/8 in |
| Function | Normally Closed (NC) |
BRANDS : DANFOSS
Key Specifications:
| Parameter | Value |
|---|---|
| Gross Weight | 0.24 Kg |
| Net Weight | 0.19 Kg |
| Volume | 0.866 Liter |
| Actuator System [mm] | 13.5 mm |
| Ambient Temperature Range [°C] | -40 - 80 °C |
| Ambient Temperature Range [°F] [Max] | 175 °F |
| Ambient Temperature Range [°F] [Min] | -40 °F |
| Category | Art. 4, par. 3 |
| Coil | No |
| Cv Value [gal/min] | 0.31 gal/min |
| Direction | Straightway |
| Fluid Group | 1, 2 |
| Function | Normally Closed (NC) |
| Identical Product | 032F8117 |
| Inlet Size [mm] | 10 mm |
| Kv Value [m³/h] | 0.27 m³/h |
| Lubricants Compatibility | AB, PAG, PAO, POE, PVE |
| Manual Operation Option | No |
| Max. Working Pressure [bar] | 45.2 bar |
| Max. Working Pressure [psig] | 655 psig |
| MaxOPD [bar] 10W AC | 38 bar |
| MaxOPD [psi] 10W AC | 550 psi |
| Medium Temperature Range [°C] [Max] | 105 °C |
| Medium Temperature Range [°C] [Min] | -40 °C |
| Medium Temperature Range [°F] [Max] | 221 °F |
| Medium Temperature Range [°F] [Min] | -40 °F |
| MinODP [bar] | 0 bar |
| MOPD [bar/psi] | Coil Dependent |
| Orifice Size [mm] | 3.3 mm |
| Outlet Connection Type | Flare |
| Outlet Size [in] | 3/8 in |
| Outlet Size [mm] | 10 mm |
| Packing Format | Multi-pack |
| Parts Program Name | EVR |
| Product Accessories | Solenoid valve accessories |
| Product Group | Solenoid valves |
| Product Name Description | Solenoid Valve |
| Quantity per Packing Format | 24 pcs |
| REACH Candidate List Substances 0.1 | Lead (CAS no. 7439-92-1) |
| Serviceable | Solenoid valve spare parts |
| Type | EVR 3 |
| Type Designation | Solenoid Valve |
| Valve Operation | Direct |
Please note that the above table includes the specified specifications and features for the Solenoid Valve, EVR 3.
Refrigerants :
- R125, R134a, R404A, R407A, R407F, R410A, R417A, R448A, R449A, R450A, R452A, R513A, R407H, R413A, R422A, R422B, R422D, R438A, R447A, R449B, R463A, R513B, R515A, R515B, R442A, R447B, R512A, R22, R407C, R455A, R1234yf, R1234ze(E), R152a, R32, R444B, R452B, R454A, R454B, R454C, R507A, R516A
