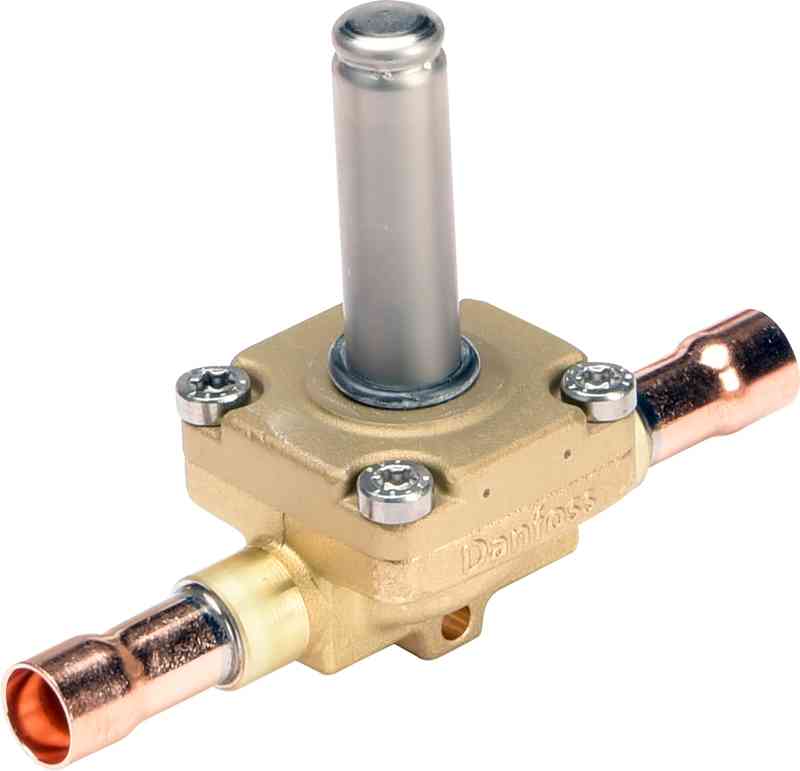

Danfoss Solenoid Valve Flare 5/8' EVR-10
Solenoid Valve - EVR 10, Flare, 5/8 in, Function: NC
| Product Name | Solenoid Valve, EVR 10 |
| Part Number | 032L8098 |
| Inlet Connection Type | Flare |
| Inlet Size [in] | 5/8 in |
| Outlet Connection Type | Flare |
| Outlet Size [in] | 5/8 in |
| Function | Normally Closed (NC) |
BRANDS : DANFOSS
Key Specifications:
| Parameter | Value |
|---|---|
| Kv Value [m³/h] | 2.200 m³/h |
| Cv Value [gal/min] | 2.6 gal/min |
| Max. Working Pressure [bar] | 45.2 bar |
| Max. Working Pressure [psig] | 655 psig |
| Orifice Size [mm] | 10 mm |
| Ambient Temperature Range [°C] | -40 - 80 °C |
| Ambient Temperature Range [°F] [Max] | 175 °F |
| Ambient Temperature Range [°F] [Min] | -40 °F |
| Medium Temperature Range [°C] [Max] | 105 °C |
| Medium Temperature Range [°C] [Min] | -40 °C |
| Medium Temperature Range [°F] [Max] | 221 °F |
| Medium Temperature Range [°F] [Min] | -40 °F |
| MinODP [bar] | 0.03 bar |
| MinODP [psi] | 0.44 psi |
| MOPD [bar/psi] | COIL DEPENDENT |
| Packing Format | Multi-pack |
| Quantity per Packing Format | 12 pcs |
| Valve Operation | Servo-Diaphragm |
| Category | Art. 4, par. 3 |
| Coil | No |
| Manual Operation Option | No |
| Product Accessories | Solenoid valve accessories |
| Product Group | Solenoid valves |
| Product Name Description | Solenoid valve |
| REACH Candidate List Substances 0.1 | Lead (CAS no. 7439-92-1) |
Explore the high-performance EVR 10 Solenoid Valve, designed with precision and reliability for various applications. Its Normally Closed (NC) function, 2.200 m³/h Kv value, and compatibility with a wide range of refrigerants make it a top choice for fluid control systems in demanding environments.
Refrigerants :
- R125 R134a R404A R407A R407F R410A R417A R448A R449A R450A R452A R513A R407H R413A R422A R422B R422D R438A R447A R449B R463A R513B R515A R515B R442A R447B R512A R22 R407C R455A R1234yf R1234ze(E) R152a R32 R444B R452B R454A R454B R454C R507A R516A
UL Approved Refrigerants :
- R125 R134a R22 R404A R407A R407C R407F R407H R410A R413A R417A R422A R422B R422D R438A R442A R447A R447B R448A R449A R449B R450A R452A R463A R507A R512A R513A R513B R515A R515B
