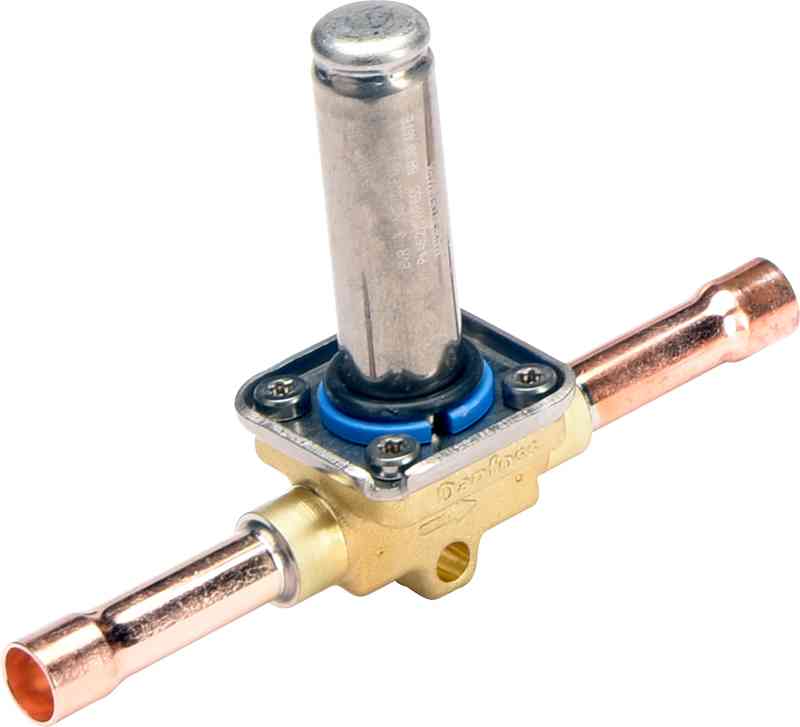

Danfoss Solenoid Valve Solder 3/8' EVR-3S

100 In Stock
Venenatis
Limited Offer Ends In:
-
+
Add to Wishlist
Add to Compare
   Ask about this product in whatsapp

Ask a question



Product Name                                               Solenoid valve
Type EVR 3
Type Designation Solenoid valve, Solder
Function Normally Closed (NC)
Inlet Connection Type Solder, ODF
Inlet Size [in] 3/8 in
Outlet Connection Type Solder, ODF





BRANDS : DANFOSS



Key Specifications:

Parameter                                                                                   Value
Outlet Size [in] 3/8 in
Ambient Temperature Range [°C] Max -40 °C
Ambient Temperature Range [°C] Min 80 °C
Ambient Temperature Range [°F] Max 175 °F
Ambient Temperature Range [°F] Min -40 °F
Medium Temperature Range [°C] Max 105 °C
Medium Temperature Range [°C] Min -40 °C
Medium Temperature Range [°F] Max 221 °F
Medium Temperature Range [°F] Min -40 °F
Max. Working Pressure [bar] 45.2 bar
Max. Working Pressure [psig] 655 psig
MaxOPD [bar] 10W AC 38 bar
MaxOPD [psi] 10W AC 550 psi
MinODP [bar] 0 bar
MOPD [bar/psi] Coil Dependent
MWP [bar] PED Compliant 49 bar
Kv Value [m³/h] 0.270 m³/h
Cv Value [gal/min] 0.31 gal/min
Orifice Size [mm] 3.3 mm
Volume 0.897 Liter
Gross Weight 0.224 Kg
Net Weight 0.174 Kg
Actuator System [mm] 13.5 mm
Lubricants Compatibility AB, PAG, PAO, POE, PVE
Manual Operation Option No
Category Art. 4, par. 3
Identical Product 032F5084
Packing Format Multi pack
Parts Program Name EVR
Quantity per Packing Format 24 pc
EAN 5702422004189
Identical Product 032F5084
Serviceable Solenoid valve spare parts
Valve Operation DIRECT

Refrigerants :

  • R1234yf, R125, R134a, R152a, R22, R290, R32, R404A, R407A, R407C, R407F, R410A, R417A, R448A, R449A, R450A, R452A, R600, R600a, R513A, R452B, R454B, R1234ze(E), R407H, R413A, R422A, R422B, R422D, R438A, R442A, R444B, R447A, R447B, R449B, R454C, R455A, R463A, R512A, R513B, R515A, R515B, R516A, R454A, R507A
