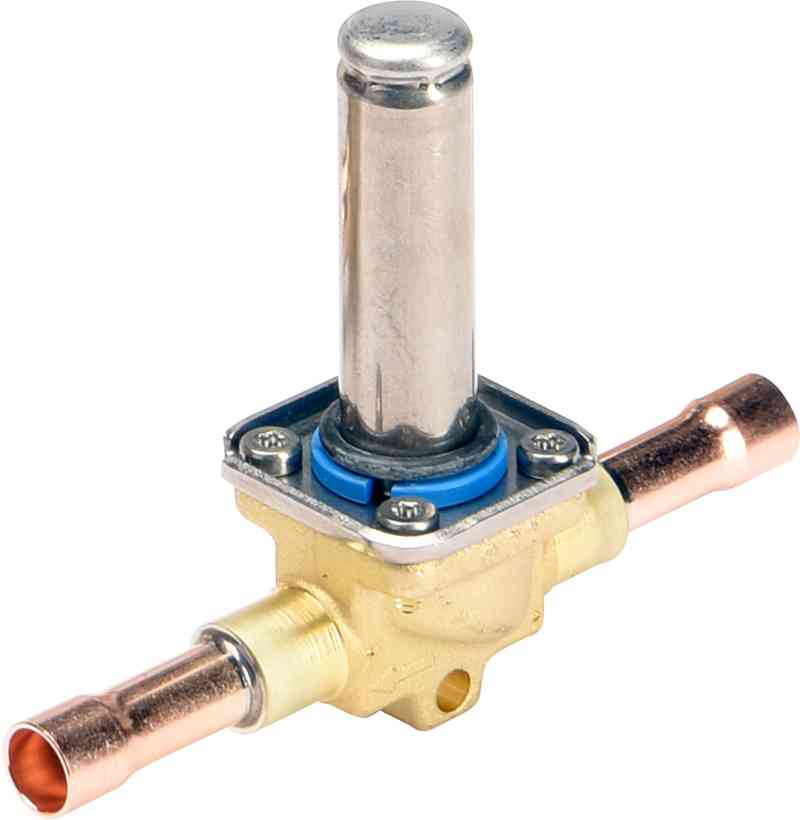

Danfoss Solenoid Valve Solder 1/2' EVR-6S
Product Name
Solenoid Valve Solder, EVR 6
Type
EVR 6
Type Designation
Solenoid valve, Solder
Function
Normally Closed (NC)
Inlet Connection Type
Solder, ODF
Inlet Size [in]
1/2 in
Outlet Connection Type
Solder, ODF
BRANDS : DANFOSS
Key Specifications:
Parameter | Value |
---|---|
Outlet Size [in] | 1/2 in |
Ambient Temperature Range [°C] Max | -40 °C |
Ambient Temperature Range [°C] Min | 80 °C |
Ambient Temperature Range [°F] Max | 175 °F |
Ambient Temperature Range [°F] Min | -40 °F |
Medium Temperature Range [°C] Max | 105 °C |
Medium Temperature Range [°C] Min | -40 °C |
Medium Temperature Range [°F] Max | 221 °F |
Medium Temperature Range [°F] Min | -40 °F |
Max. Working Pressure [bar] | 45.2 bar |
Max. Working Pressure [psig] | 655 psig |
MaxOPD [bar] 10W AC | 38 bar |
MaxOPD [bar] 20W DC | 28 bar |
MaxOPD [bar] Coil BJ/BX | 38 bar |
MaxOPD [psi] 10W AC | 550 psi |
MaxOPD [psi] 20W DC | 406 psi |
MaxOPD [psi] Coil BJ/BX | 550 psi |
MinODP [bar] | 0.03 bar |
MinODP [psi] | 0.44 psi |
MOPD [bar/psi] | Coil Dependent |
MWP [bar] PED Compliant | 49 bar |
Kv Value [m³/h] | 1.000 m³/h |
Cv Value [gal/min] | 1.15 gal/min |
Orifice Size [mm] | 6 mm |
Volume | 0.924 Liter |
Gross Weight | 0.238 Kg |
Net Weight | 0.19 Kg |
Actuator System [mm] | 13.5 mm |
Lubricants Compatibility | AB, PAG, PAO, POE, PVE |
Manual Operation Option | No |
Category | Art. 4, par. 3 |
Identical Product | 032L7308 |
Packing Format | Multi pack |
Parts Program Name | EVR |
Quantity per Packing Format | 12 pc |
EAN | 5702428952910 |
Identical Product | 032L7308 |
Serviceable | Solenoid valve spare parts |
Refrigerants :
- R1234yf, R125, R134a, R152a, R22, R290, R32, R404A, R407A, R407C, R407F, R410A, R417A, R448A, R449A, R450A, R452A, R600, R600a, R513A, R452B, R454B, R1234ze(E), R407H, R413A, R422A, R422B, R422D, R438A, R444B, R447A, R449B, R454C, R455A, R463A, R513B, R515A, R515B, R516A, R442A, R447B, R512A, R454A, R507A
UL Approved Refrigerants :
- R125, R134a, R152a, R22, R404A, R407A, R407C, R407F, R407H, R410A, R413A, R417A, R422A, R422B, R422D, R438A, R442A, R447A, R447B, R448A, R449A, R449B, R450A, R452A, R455A, R463A, R507A, R512A, R513A, R513B, R515A, R515B, R516A, R442A, R447B, R512A, R454A, R507A
