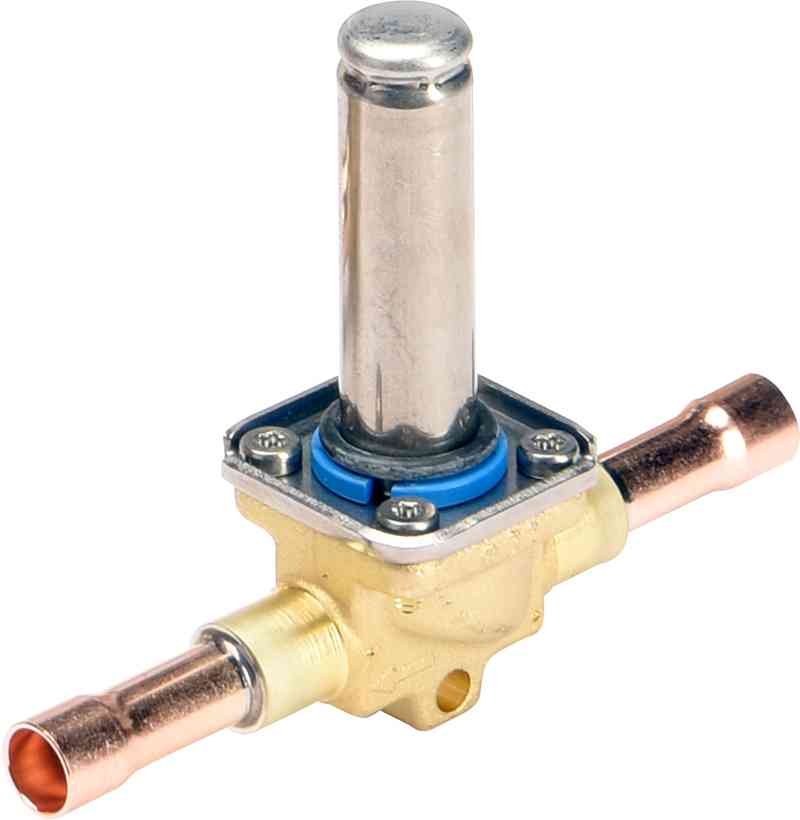

Danfoss Solenoid Valve Solder 3/8' EVR-6

100 In Stock
Venenatis
Limited Offer Ends In:
-
+
Add to Wishlist
Add to Compare
   Ask about this product in whatsapp

Ask a question

Solenoid valve, EVR 6, Solder, ODF, 3/8 in, Function: NC

032L1212

Kv value [m³/h]: 1.000, Packing format: Multi pack

Key Specifications:

Specification                          Details
Product Name EVR 6
Inlet Connection Type Solder, ODF
Inlet Size [in] 3/8 in
Outlet Connection Type Solder, ODF
Outlet Size [in] 3/8 in

BRANDS : DANFOSS



Specification                          Details
Function Normally Closed (NC)
Kv Value [m³/h] 1 m³/h
Cv Value [gal/min] 1.15 gal/min
Orifice Size [mm] 6 mm
Max. Working Pressure [bar]                                                                                                                        45.2 bar
Max. Working Pressure [psig] 655 psig
MaxOPD [bar] 10W AC 38 bar
MaxOPD [bar] 20W DC 28 bar
MaxOPD [bar] Coil BJ/BX 38 bar
MaxOPD [psi] 10W AC 550 psi
MaxOPD [psi] 20W DC 406 psi
MaxOPD [psi] Coil BJ/BX 550 psi
Medium Temperature Range [°C] -40 °C to 105 °C
Medium Temperature Range [°F] -40 °F to 221 °F
Ambient Temperature Range [°C] -40 °C to Coil Dependent
Ambient Temperature Range [°F] -40 °F to 175 °F
Lubricants Compatibility AB, PAG, PAO, POE, PVE
Coil No
Manual Operation Option No
Packing Format Multi-pack
Identical Product 032L5219
Approval UL, EAC, LLC CDC EURO-TYSK
PED Category Art. 4, par. 3
REACH Candidate List Substances Lead (CAS no. 7439-92-1)
Refrigerants R125, R134a, R152a, R22, R404A, R407A, R407C, R407F, R407H, R410A, R413A, R417A, R422A, R422B, R422D, R438A, R442A, R444B, R447A, R447B, R448A, R449A, R449B, R450A, R452A, R455A, R463A, R507A, R512A, R513A, R513B, R515A, R515B, R516A, R290, R600, R600a
SCIP Dossier No. 29cb9379-b48f-46b9-9360-0837e10ce0bf
SCIP Dossier Product Name EVR 10-22/EVO 103/EVRC/EVRH 10-20 (NC)
Serviceable Solenoid Valve Spare Parts
Type EVR 6
Type Designation Solenoid Valve, Solder
UL Approved Refrigerants R125, R134a, R152a, R22, R404A, R407A, R407C, R407F, R407H, R410A, R413A, R417A, R422A, R422B, R422D, R438A, R442A, R444B, R447A, R447B, R448A, R449A, R449B, R450A, R452A, R455A, R463A, R507A, R512A, R513A, R513B, R515A, R515B, R516A, R290, R600, R600a
Valve Operation Servo-diaphragm
