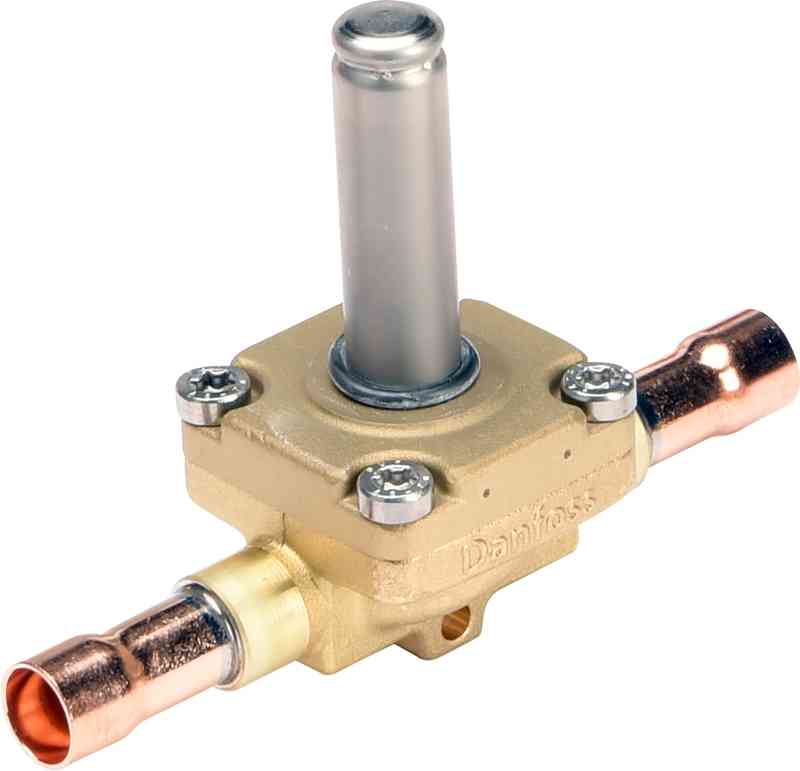

Danfoss Solenoid Valve Solder 5/8' EVR-10
Solenoid valve, EVR 10, Solder, ODF, 5/8 in, Function: NC
032L1214
Kv value [m³/h]: 2.200, Packing format: Multi pack
| Product Name | Solenoid Valve, EVR 10S |
|---|---|
| Product Name | EVR 10 |
| Inlet Connection Type | Solder, ODF |
| Inlet Size [in] | 5/8 in |
| Outlet Connection Type | Solder, ODF |
| Outlet Size [in] | 5/8 in |
| Function | Normally Closed (NC) |
BRANDS : DANFOSS
Key Specifications:
| Parameter | Value |
|---|---|
| Kv Value [m³/h] | 2.2 m³/h |
| Cv Value [gal/min] | 2.6 gal/min |
| Orifice Size [mm] | 10 mm |
| Max. Working Pressure [bar] | 45.2 bar |
| Max. Working Pressure [psig] | 655 psig |
| MaxOPD [bar] 10W AC | 38 bar |
| MaxOPD [bar] 20W DC | 20 bar |
| MaxOPD [bar] Coil BJ/BX | 38 bar |
| MaxOPD [psi] 10W AC | 550 psi |
| MaxOPD [psi] 20W DC | 290 psi |
| MaxOPD [psi] Coil BJ/BX | 550 psi |
| Medium Temperature Range [°C] | -40 °C to 105 °C |
| Medium Temperature Range [°F] | -40 °F to 221 °F |
| Ambient Temperature Range [°C] | -40 °C to 80 °C |
| Ambient Temperature Range [°F] | -40 °F to 175 °F |
| Lubricants Compatibility | AB, PAG, PAO, POE, PVE |
| Coil | No |
| Manual Operation Option | No |
| Packing Format | Multi-pack |
| Identical Product | 032L5098 |
| Approval | UL, EAC, LLC CDC EURO-TYSK |
| PED Category | Art. 4, par. 3 |
| REACH Candidate List Substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R1234yf, R125, R134a, R152a, R22, R290, R32, R404A, R407A, R407C, R407F, R410A, R417A, R448A, R449A, R450A, R452A, R600, R600a, R513A, R452B, R454B, R1234ze(E), R407H, R413A, R422A, R422B, R422D, R438A, R442A, R444B, R447A, R447B, R449B, R454C, R455A, R463A, R512A, R513A, R513B, R515A, R515B, R516A, R454A, R507A |
| SCIP Dossier No. | f5d8f281-1004-4fb6-9f5a-6febaff329a2 |
| SCIP Dossier Product Name | Electric control valve coil(8) |
| Serviceable | Solenoid Valve Spare Parts |
| Type | EVR 10 |
| Type Designation | Solenoid Valve, Solder |
| UL Approved Refrigerants | R125, R134a, R152a, R22, R404A, R407A, R407C, R407F, R407H, R410A, R413A, R417A, R422A, R422B, R422D, R438A, R442A, R447A, R447B, R448A, R449A, R449B, R450A, R452A, R455A, R463A, R507A, R512A, R513A, R513B, R515A, R515B, R516A, R290, R600, R600a |
| Valve Operation | Servo-diaphragm |
